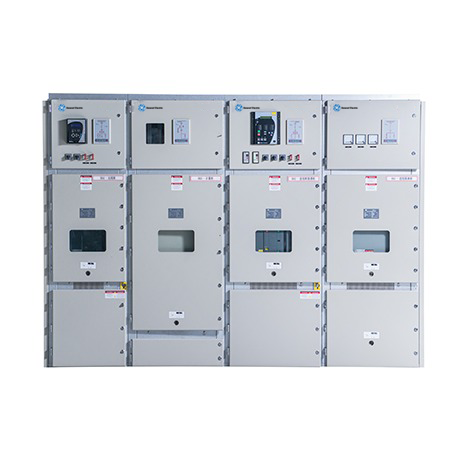

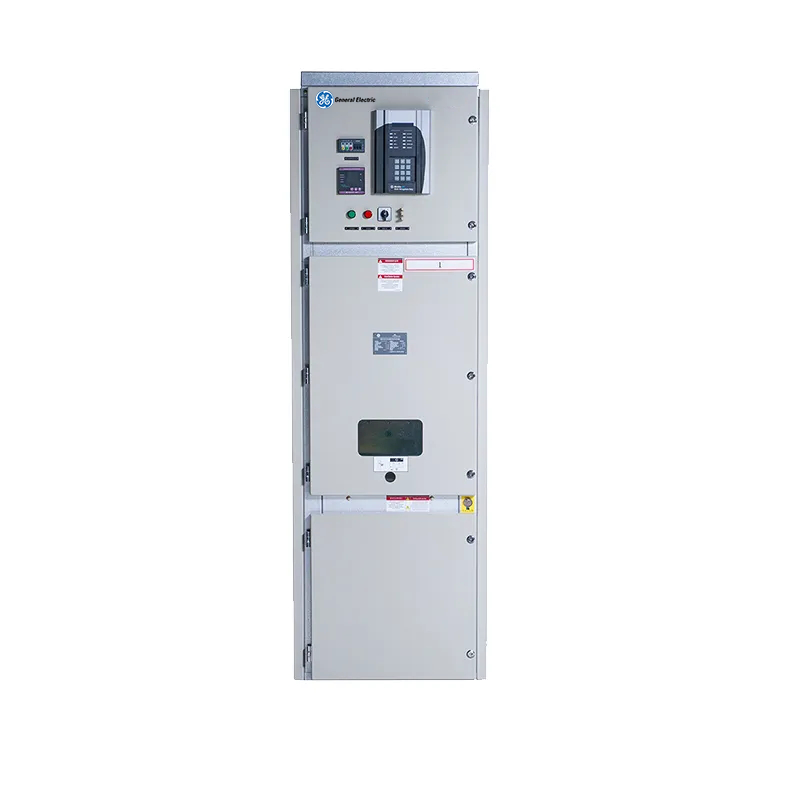

GE SecoGear™ P/V Series
3.6kV–24kV Air-Insulated Metal-Enclosed Switchgear
ANSI / IEEE & UL Certified | SF6-Free Eco Design | Up to 40kA Arc-Resistant Protection
Reliable Medium-Voltage Power—Engineered for Critical Infrastructure
The GE SecoGear™ P/V Series delivers proven medium-voltage performance for mission-critical power systems. Designed with air-insulated, epoxy-resin technology, this switchgear provides high short-circuit strength, arc-resistant safety, and long service life—without the environmental risks of SF6 gas.
Backed by over a century of GE vacuum interruption expertise, the P/V Series combines compact construction, advanced protection, and global compliance for modern substations, industrial plants, and data centers.
Technical Specifications
Electrical Ratings
| Parameter | P/V-12 | P/V-24 |
|---|---|---|
| Rated Voltage | 3.6 / 7.2 / 12kV | 24kV |
| Main Bus Current | 630A – 5000A* | 630A – 3150A** |
| Short-Circuit Withstand | 50kA / 0.5s (135kA peak) | 31.5kA / 1s (80kA peak) |
| Internal Arc Rating | 40kA / 1s (AFLR) | 31.5kA / 1s (AFLR) |
| Insulation Medium | Air + Epoxy Resin | Air + Epoxy Resin |
| Protection Class | IP4X | IP4X |
| Standards | ANSI C37, IEEE, UL | ANSI C37, IEEE, UL |
* Forced air cooling above 4000A
** Forced air cooling ≥ 3150A
Key Advantages of GE SecoGear™ P/V Series
Proven GE Technology
Built on GE’s vacuum switching legacy since 1912, the P/V Series integrates solid insulation (epoxy resin) for enhanced dielectric performance, reduced footprint, and maintenance-free operation.
ANSI / UL Compliance
Fully certified to ANSI C37, IEEE, and UL standards, including:
- Short-circuit withstand up to 50kA
- Internal arc protection AFLR up to 40kA / 1s
- Seismic qualification AG5 (≤12kV)
SF6-Free, Eco-Friendly Design
- Zero SF6 greenhouse gas
- Air-insulated and epoxy-resin construction
- Fully recyclable materials
- ISO 14001 environmental alignment
High-Reliability Components
- SecoVac™ VB2 Plus vacuum circuit breaker
- 30,000 mechanical operations
- No breaker maintenance required
- Galaxy series protection relays
- Motorized interlocks and anti-misoperation systems
Safety & Lifecycle Benefits
Enhanced Personnel Safety
- Full mechanical & electrical interlocking
- Automatic shutter closure during breaker withdrawal
- Visible inspection window for contact position
- Voltage presence detection per IEC 61243-5
Lower Total Cost of Ownership
- 20+ year operational life
- Minimal maintenance requirements
- Faster installation with top or bottom cable entry
- Reduced downtime and spare-parts cost
Global Deployment Ready
- Designed for worldwide installations
- Operates up to 3000m altitude (12kV)
- Ambient temperature tolerance 40°C+
Applications & Integrated Solutions
Critical Infrastructure
- Data centers
- Hospitals
- Airports (e.g., Shanghai Pudong Airport)
- Olympic and public venues
Industrial Power Systems
- Oil & gas facilities
- Mining operations
- Cement plants
- Marine and offshore platforms
Smart Grid & Automation
- Galaxy relays enable:
- SCADA integration
- Remote control & monitoring
- Predictive maintenance
Flexible Configurations
- Over 32 primary schemes
- Cable or overhead line feeds
- PT metering and tie-breaker options
- Cabinet widths from 650mm to 1000mm
Why Choose GE-Heritage P/V Switchgear?
| Feature | Advantage |
|---|---|
| Arc-Resistant Design | Up to 40kA AFLR protection |
| Environmental Safety | SF6-free, air-insulated |
| Reliability | 30,000-operation vacuum breaker |
| Compliance | ANSI, IEEE, UL certified |
| Retrofit Capability | Compatible with GE legacy systems |
| Global Support | Proven installations worldwide |
Request a Custom Quote
Need a P/V-12 or P/V-24 Metal-Enclosed Switchgear configuration tailored to your project?
