Description
FC-302N500T5E54H4BGC7XXSXXXXAXBXCXXXXDX
Frequency converter
FC-302N500T5E54H4BGC7XXSXXXXAXBXCXXXXDX

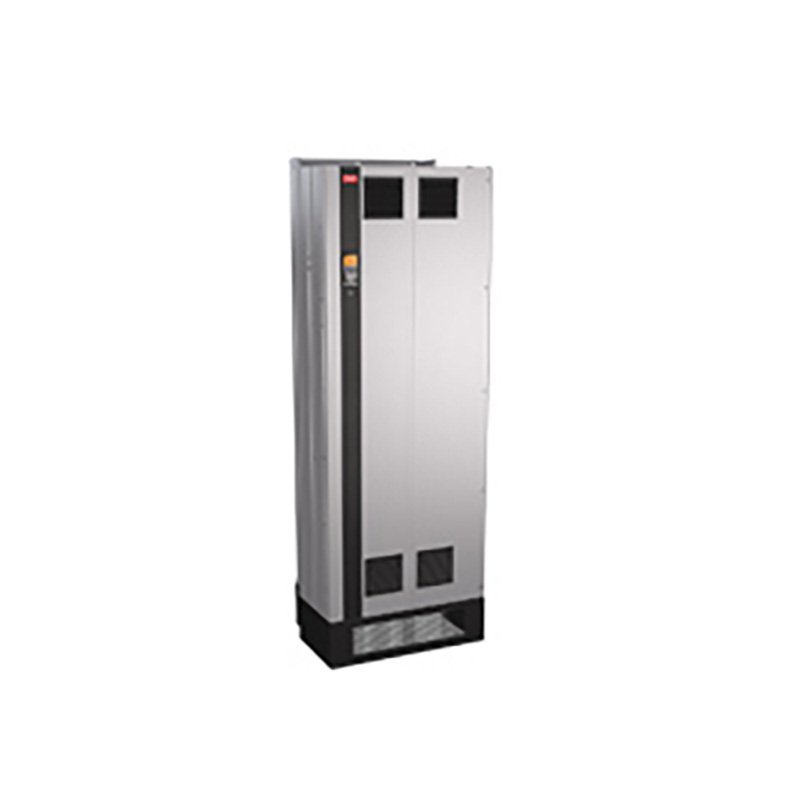

VLT® AutomationDrive FC-302
(N500) 500 KW / 650 HP, Three phase
380 – 500 VAC, (E54) IP54 / Type 12
RFI class A1 (C2)
Brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: E2H
Other options according to Model code
Model code :
FC-302N500T5E54H4BGC7XXSXXXXAXBXCXXXXDX
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
| Gross weight | 358 kg |
| Net weight | 318 kg |
| Volume | 1496 l |
| EAN | 5714853068807 |
VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | N500 | (N500) 500 KW / 650 HP |
| Phase | T | Three phase |
| Mains Voltage | 5 | 380 – 500 VAC |
| Enclosure | E54 | (E54) IP54 / Type 12 |
| RFI Filter | H4 | RFI class A1 (C2) |
| Brake – Safe Stop | B | Brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 7 | Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | E2H | E2H |
| Typecode Part 1 | FC-302N500T5E54H4BGC | |
| Typecode Part 2 | 7XXSXXXXAXBXCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 150% (HO) [KW] | 500 | |
| Power 110% (NO) [KW] | 560 | |
| Height [mm] | 2000,0 | |
| Width w/ no C options [mm] | 700,0 | |
| Depth [mm] | 510,0 | |
| Depth with Option A/B [mm] | 510,0 | |
| kVA | 610 | |
| Power Loss NO [W] | 11102 | |
| Power Loss NO [W] | 9236 | |
| Power Loss HO [W] | 9449 | |
| Power Loss HO [W] | 7771 | |
| Continuous Current (NO) [A] | 990 | |
| Intermittent Current (NO) [A] | 1089 | |
| Continuous Current (NO) [A] | 890 | |
| Intermittent Current (NO) [A] | 979 | |
| Continuous Current (HO) [A] | 880 | |
| Intermittent Current (HO) [A] | 1320 | |
| Continuous Current (HO) [A] | 780 | |
| Intermittent Current (HO) [A] | 1170 | |
| Calculated Gross Weight [kg] | 318.3 | |
| Calculated Net Weight [kg] | 318 | |
| Material Gross Weight | 358 | |
| Material Net Weight | 318 | |
| Plant from Orderline | E201 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-302N500T5E54H4BGC | |
| Modelcode02 | 7XXSXXXXAXBXCXXXXDX |
