Description

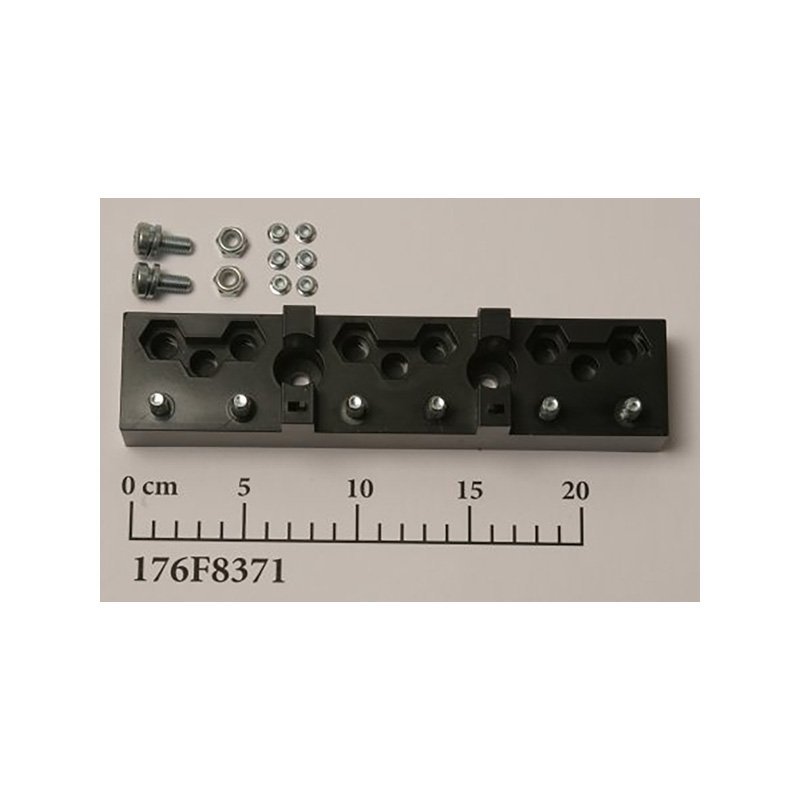

Insulation block mains/motor terminal
| Gross weight | 0.4 kg |
| Net weight | 0.2 kg |
| Volume | 0 l |
| EAN | 5710107596584 |
| Gross weight | 0.4 kg |
| Net weight | 0.2 kg |
| Volume | 0 l |
| EAN | 5710107596584 |
Connections
| Connections | Busbar input |
| Connections | Busbar input |
SPARE PARTS FC 100 SERIES
| Frame Size | D1n D4 D2n D11 D13 D1 D2 D3 |
| Frame Size | D1n D4 D2n D11 D13 D1 D2 D3 |
SPARE PARTS FC 200 SERIES
| DrivePro category | Spare Part |
| Frame Size | D4 D1n D2n D11 D13 D1 D2 D3 |
| DrivePro category | Spare Part |
| Frame Size | D4 D1n D2n D11 D13 D1 D2 D3 |
SPARE PARTS FC 300 SERIES
| Frame Size | D4 D1n D2n D11 D13 D1 D2 D3 |
| Frame Size | D4 D1n D2n D11 D13 D1 D2 D3 |
SPARE PARTS AAF SERIES
| Frame Size | (D9) D9-Frame (D14) D14-Frame |
| Frame Size | (D9) D9-Frame (D14) D14-Frame |
SPARE PARTS FC 103 SERIES
| Frame Size | D4 D11 D13 D1 D2 D3 |
| Frame Size | D4 D11 D13 D1 D2 D3 |
SPARE PARTS VLT 5000 SERIES
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (5) 380-500/460-500V AC (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7202 T5122 T7102 T5202 T7302 T5302 T7062 T7072 T7152 T7042 T7052 T7352 T5152 T7252 T5252 T7122 |
| Power rating | (352) 352 (122) 122 (102) 102 (202) 202 (302) 302 (072) 072 (062) 062 (052) 052 (042) 042 (152) 152 (252) 252 |
| VLT Series | (5) VLT® 5000 Series |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (5) 380-500/460-500V AC (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7202 T5122 T7102 T5202 T7302 T5302 T7062 T7072 T7152 T7042 T7052 T7352 T5152 T7252 T5252 T7122 |
| Power rating | (352) 352 (122) 122 (102) 102 (202) 202 (302) 302 (072) 072 (062) 062 (052) 052 (042) 042 (152) 152 (252) 252 |
| VLT Series | (5) VLT® 5000 Series |
SPARE PARTS VLT 6000 SERIES
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (6) 525-600V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T4352 T6102 T6222 T4222 T6402 T6272 T6172 T4172 T4272 T6152 T4152 T6122 T6352 |
| Power rating | (352) 352 (122) 122 (222) 222 (102) 102 (402) 402 (172) 172 (272) 272 (152) 152 |
| VLT Series | (6) VLT® 6000 Series |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (6) 525-600V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T4352 T6102 T6222 T4222 T6402 T6272 T6172 T4172 T4272 T6152 T4152 T6122 T6352 |
| Power rating | (352) 352 (122) 122 (222) 222 (102) 102 (402) 402 (172) 172 (272) 272 (152) 152 |
| VLT Series | (6) VLT® 6000 Series |
SPARE PARTS VLT 8000 SERIES
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7202 T4352 T7102 T7402 T7302 T4202 T4302 T7062 T7072 T7152 T7052 T7352 T7252 T4152 T7122 T4252 |
| Power rating | (352) 352 (122) 122 (102) 102 (202) 202 (302) 302 (402) 402 (072) 072 (062) 062 (052) 052 (152) 152 (252) 252 |
| VLT Series | (8) VLT® 8000 Series |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7202 T4352 T7102 T7402 T7302 T4202 T4302 T7062 T7072 T7152 T7052 T7352 T7252 T4152 T7122 T4252 |
| Power rating | (352) 352 (122) 122 (102) 102 (202) 202 (302) 302 (402) 402 (072) 072 (062) 062 (052) 052 (152) 152 (252) 252 |
| VLT Series | (8) VLT® 8000 Series |
