Description

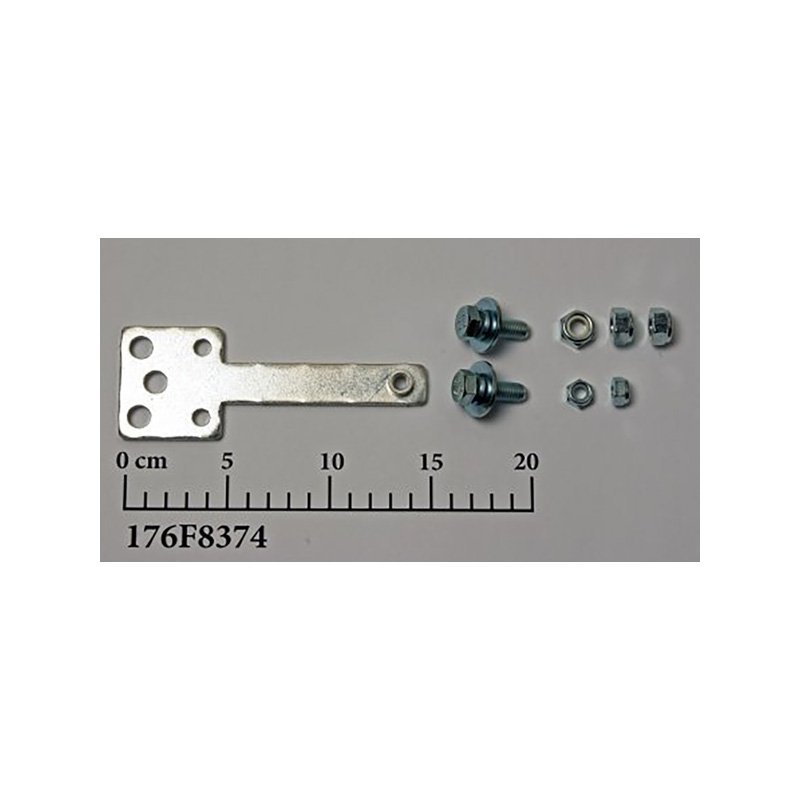

Busbar mains/motor terminal D1 frame
| Gross weight | 0.276 kg |
| Net weight | 0.2 kg |
| Volume | 2.242 dm3 |
| EAN | 5710107596553 |
| Gross weight | 0.276 kg |
| Net weight | 0.2 kg |
| Volume | 2.242 dm3 |
| EAN | 5710107596553 |
Connections
| Connections | Busbar input |
| Connections | Busbar input |
SPARE PARTS FC 100 SERIES
| Frame Size | D1 D3 |
| Frame Size | D1 D3 |
SPARE PARTS FC 200 SERIES
| Frame Size | D1 D3 |
| Frame Size | D1 D3 |
SPARE PARTS FC 300 SERIES
| DrivePro category | Spare Part |
| Frame Size | D1 D3 |
| DrivePro category | Spare Part |
| Frame Size | D1 D3 |
SPARE PARTS FC 103 SERIES
| Frame Size | D1 D3 |
| Frame Size | D1 D3 |
SPARE PARTS VLT 5000 SERIES
| Coating | (C1) With coating |
| Dedicated Application | (P) Process |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (5) 380-500/460-500V AC (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7062 T7072 T7152 T7052 T5152 T7122 T5122 T7102 |
| Power rating | (122) 122 (102) 102 (202) 202 (062) 062 (052) 052 (152) 152 |
| VLT Series | (5) VLT® 5000 Series |
| Coating | (C1) With coating |
| Dedicated Application | (P) Process |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (5) 380-500/460-500V AC (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7062 T7072 T7152 T7052 T5152 T7122 T5122 T7102 |
| Power rating | (122) 122 (102) 102 (202) 202 (062) 062 (052) 052 (152) 152 |
| VLT Series | (5) VLT® 5000 Series |
SPARE PARTS VLT 6000 SERIES
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (6) 525-600V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T6172 T4172 T6152 T4152 T6122 T6102 |
| Power rating | (122) 122 (102) 102 (202) 202 (172) 172 (152) 152 |
| VLT Series | (6) VLT® 6000 Series |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (6) 525-600V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T6172 T4172 T6152 T4152 T6122 T6102 |
| Power rating | (122) 122 (102) 102 (202) 202 (172) 172 (152) 152 |
| VLT Series | (6) VLT® 6000 Series |
SPARE PARTS VLT 8000 SERIES
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7062 T7072 T7152 T7052 T4152 T7122 T7202 T7102 T4202 |
| Power rating | (122) 122 (102) 102 (202) 202 (072) 072 (062) 062 (052) 052 (152) 152 |
| VLT Series | (8) VLT® 8000 Series |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7062 T7072 T7152 T7052 T4152 T7122 T7202 T7102 T4202 |
| Power rating | (122) 122 (102) 102 (202) 202 (072) 072 (062) 062 (052) 052 (152) 152 |
| VLT Series | (8) VLT® 8000 Series |
