Description

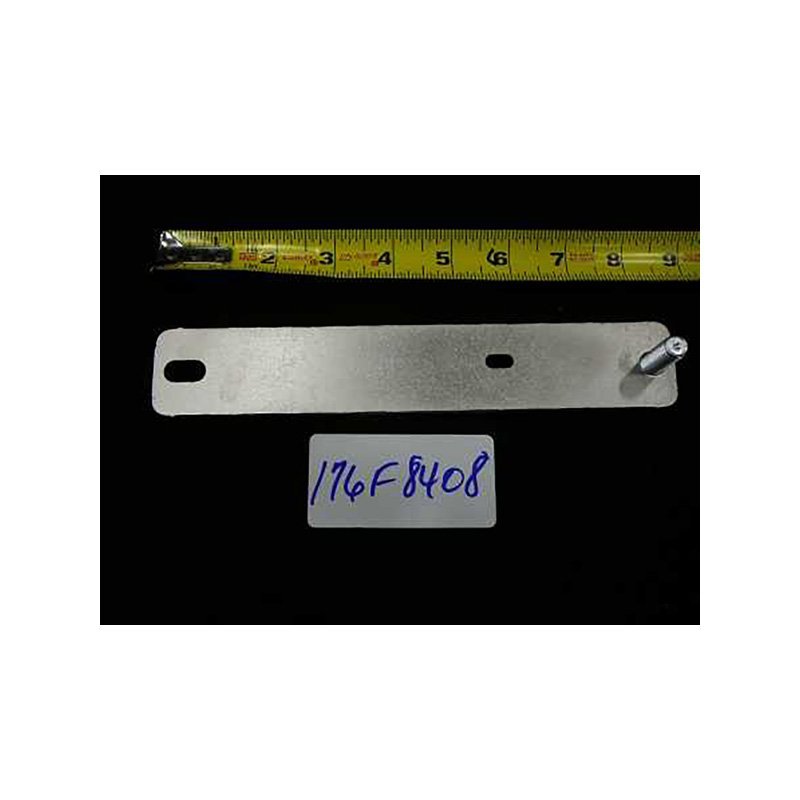

Busbar disc. ‘R’ & ‘S’ D2 frame
| Gross weight | 0.291 kg |
| Net weight | 0.25 kg |
| Volume | 3.447 dm3 |
| EAN | 5710107596225 |
| Gross weight | 0.291 kg |
| Net weight | 0.25 kg |
| Volume | 3.447 dm3 |
| EAN | 5710107596225 |
Connections
| Connections | Busbar Rectifier/SCR |
| Connections | Busbar Rectifier/SCR |
SPARE PARTS FC 100 SERIES
| DrivePro category | Spare Part |
| Frame Size | D1n D4 D2n D11 D13 D2 |
| Mains Option | (A) Fuse + Loadsharing (7) Fuse |
| RFI Filter | (H2) RFI filter Class A2 |
| DrivePro category | Spare Part |
| Frame Size | D1n D4 D2n D11 D13 D2 |
| Mains Option | (A) Fuse + Loadsharing (7) Fuse |
| RFI Filter | (H2) RFI filter Class A2 |
SPARE PARTS FC 200 SERIES
| Frame Size | D1n D4 D2n D11 D13 D2 |
| Mains Option | (A) Fuse + Loadsharing (7) Fuse |
| RFI Filter | (H2) RFI filter Class A2 |
| Frame Size | D1n D4 D2n D11 D13 D2 |
| Mains Option | (A) Fuse + Loadsharing (7) Fuse |
| RFI Filter | (H2) RFI filter Class A2 |
SPARE PARTS FC 300 SERIES
| /Mains Option | (A) Fuse + Loadsharing (7) Fuse |
| Frame Size | D4 D1n D2n D11 D13 D2 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| /Mains Option | (A) Fuse + Loadsharing (7) Fuse |
| Frame Size | D4 D1n D2n D11 D13 D2 |
| RFI Filter | (H2) RFI Class A2 (C3) |
SPARE PARTS AAF SERIES
| Frame Size | (D9) D9-Frame (D14) D14-Frame |
| Frame Size | (D9) D9-Frame (D14) D14-Frame |
SPARE PARTS FC 103 SERIES
| /Mains Option | (A) Fuse + Loadsharing (7) Fuse |
| Frame Size | D4 D11 D13 D2 |
| RFI Filter | (H2) RFI filter Class A2 |
| /Mains Option | (A) Fuse + Loadsharing (7) Fuse |
| Frame Size | D4 D11 D13 D2 |
| RFI Filter | (H2) RFI filter Class A2 |
SPARE PARTS VLT 5000 SERIES
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (5) 380-500/460-500V AC (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7352 T7252 T5252 T7202 T7302 T5202 T5302 |
| Power rating | (352) 352 (202) 202 (302) 302 (252) 252 |
| VLT Series | (5) VLT® 5000 Series |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (5) 380-500/460-500V AC (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7352 T7252 T5252 T7202 T7302 T5202 T5302 |
| Power rating | (352) 352 (202) 202 (302) 302 (252) 252 |
| VLT Series | (5) VLT® 5000 Series |
SPARE PARTS VLT 6000 SERIES
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (6) 525-600V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T6272 T4272 T6352 T4352 T6222 T4222 T6402 |
| Power rating | (352) 352 (222) 222 (402) 402 (272) 272 |
| VLT Series | (6) VLT® 6000 Series |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (6) 525-600V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T6272 T4272 T6352 T4352 T6222 T4222 T6402 |
| Power rating | (352) 352 (222) 222 (402) 402 (272) 272 |
| VLT Series | (6) VLT® 6000 Series |
SPARE PARTS VLT 8000 SERIES
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7352 T7252 T4252 T4352 T7402 T7302 T4302 |
| Power rating | (352) 352 (302) 302 (402) 402 (252) 252 |
| VLT Series | (8) VLT® 8000 Series |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz (7) 525-690 V AC |
| Phase | (T) Three Phases |
| Phase+Mains+Power | T7352 T7252 T4252 T4352 T7402 T7302 T4302 |
| Power rating | (352) 352 (302) 302 (402) 402 (252) 252 |
| VLT Series | (8) VLT® 8000 Series |
