Description

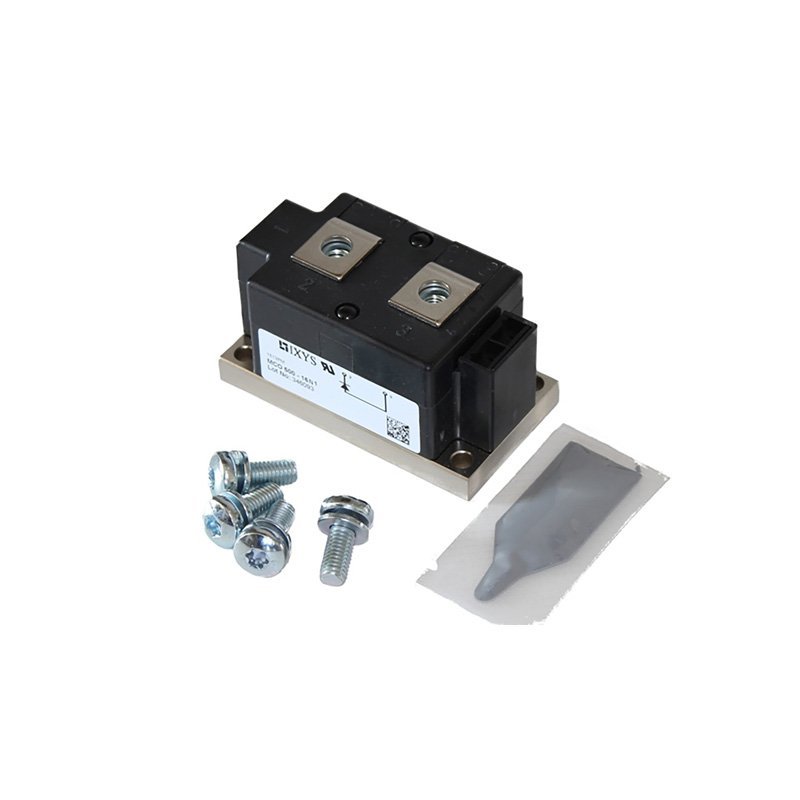

Rectifier bridge 600AMP 1600V E frame
E-Frame Drives:
For use on drives produced after week 5, 2010 and before week 16, 2016.
A 176F2153 conversion kit is required on drives
produced before week 5, 2010, but cannot be used on drives produced
after week 16, 2016.
Before ordering this part please revisit PN 136 and PN 268 to make sure
the correct parts are selected
| Gross weight | 0.824 kg |
| Net weight | 0.8 kg |
| Volume | 2.35 dm3 |
| EAN | 5710107595372 |
| Gross weight | 0.824 kg |
| Net weight | 0.8 kg |
| Volume | 2.35 dm3 |
| EAN | 5710107595372 |
Power Devices
| Power devices | Rectifier bridge |
| Power devices | Rectifier bridge |
SPARE PARTS FC 100 SERIES
| Frame Size | E7 E9 E1 E2 |
| Mains Voltage | (4) 380 – 480 VAC (5) 380 – 500 VAC |
| Phase | (T) Three phase |
| Frame Size | E7 E9 E1 E2 |
| Mains Voltage | (4) 380 – 480 VAC (5) 380 – 500 VAC |
| Phase | (T) Three phase |
SPARE PARTS FC 200 SERIES
| DrivePro category | Suitcase spare part Recommended spare part Spare Part |
| Frame Size | E7 E9 E1 E2 |
| Mains Voltage | (4) 380 – 480 VAC (5) 380 – 500 VAC |
| Phase | (T) Three phase |
| DrivePro category | Suitcase spare part Recommended spare part Spare Part |
| Frame Size | E7 E9 E1 E2 |
| Mains Voltage | (4) 380 – 480 VAC (5) 380 – 500 VAC |
| Phase | (T) Three phase |
SPARE PARTS FC 300 SERIES
| Frame Size | E7 E9 E1 E2 |
| Mains Voltage | (5) 380 – 500 VAC |
| Phase | (T) Three phase |
| Frame Size | E7 E9 E1 E2 |
| Mains Voltage | (5) 380 – 500 VAC |
| Phase | (T) Three phase |
SPARE PARTS FC 103 SERIES
| Frame Size | E1 E2 |
| Mains Voltage | (4) 380 – 480 VAC (5) 380 – 500 VAC |
| Phase | (T) Three phase |
| Power Rating | 400 KW / 550 HP 315 KW / 450 HP 355 KW / 500 HP 450 KW / 600 HP |
| Frame Size | E1 E2 |
| Mains Voltage | (4) 380 – 480 VAC (5) 380 – 500 VAC |
| Phase | (T) Three phase |
| Power Rating | 400 KW / 550 HP 315 KW / 450 HP 355 KW / 500 HP 450 KW / 600 HP |
SPARE PARTS VLT 5000 SERIES
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (5) 380-500/460-500V AC |
| Phase | (T) Three Phases |
| Power rating | (352) 352 (452) 452 (552) 552 (502) 502 |
| VLT Series | (5) VLT® 5000 Series |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (5) 380-500/460-500V AC |
| Phase | (T) Three Phases |
| Power rating | (352) 352 (452) 452 (552) 552 (502) 502 |
| VLT Series | (5) VLT® 5000 Series |
SPARE PARTS VLT 6000 SERIES
| Dedicated Application | (H) HVAC |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz |
| Phase | (T) Three Phases |
| Power rating | (552) 552 (402) 402 (502) 502 (602) 602 |
| VLT Series | (6) VLT® 6000 Series |
| Dedicated Application | (H) HVAC |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz |
| Phase | (T) Three Phases |
| Power rating | (552) 552 (402) 402 (502) 502 (602) 602 |
| VLT Series | (6) VLT® 6000 Series |
SPARE PARTS VLT 8000 SERIES
| Dedicated Application | (A) AQUA |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz |
| Phase | (T) Three Phases |
| Power rating | (452) 452 (652) 652 (502) 502 (602) 602 |
| VLT Series | (8) VLT® 8000 Series |
| Dedicated Application | (A) AQUA |
| Enclosure Type | (C) Compact |
| Mains Voltage U(in) | (4) 380-480V +/- 10% 50/60Hz |
| Phase | (T) Three Phases |
| Power rating | (452) 452 (652) 652 (502) 502 (602) 602 |
| VLT Series | (8) VLT® 8000 Series |
