Description

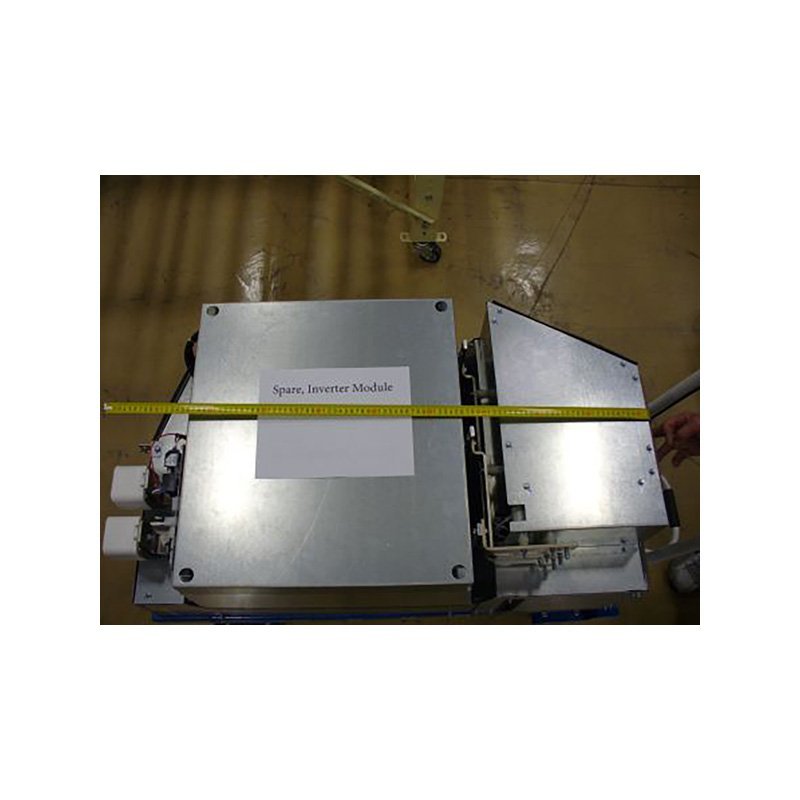

Inverter module 500kW 500V
This spare part is to be used on the following drives:
VLT® HVAC Drive FC 102 and VLT® Automation Drive FC 302 up to series
number 12.
VLT® AQUA Drive FC 202 up to series number 7.
Any F frame manufactured before week 20 year 2013.
Before ordering please read Product Note 194.
| Gross weight | 150 kg |
| Net weight | 90 kg |
| Volume | 0 l |
| EAN | 5710107607068 |
| Gross weight | 150 kg |
| Net weight | 90 kg |
| Volume | 0 l |
| EAN | 5710107607068 |
Power Devices
| Power devices | IGBT dual |
| Power devices | IGBT dual |
SPARE PARTS FC 300 SERIES
| DrivePro category | Suitcase spare part Recommended spare part Spare Part |
| Mains Voltage | (5) 380 – 500 VAC |
| Phase | (T) Three phase |
| Power Rating | (P450) 450 KW / 600 HP |
| RFI Filter | (HH) IRM for IT Mains + A1 RFI (HJ) NAMUR Terminals + A2 RFI (HK) NAMUR Terminals + A1 RFI (HL) RCD + NAMUR + A2 RFI LHD – AAF006 filter + A2 RFI (HM) RCD + NAMUR + A1 RFI (HN) IRM + NAMUR + A2 RFI LHD – AAF006 filter + A1 RFI (HP) IRM + NAMUR + A1 RFI (H1) RFI Class A1/B (C1) (H2) RFI Class A2 (C3) (H3) RFI Class A1/B (C1) (H4) RFI class A1 (C2) (H5)Marine,ruggedis RFI A2(C3) RFI Filter (HE) RCD TN/TT Mains+ A2 RFI (HF) RCD TN/TT Mains+ A1 RFI (HG) IRM for IT Mains + A2 RFI |
| DrivePro category | Suitcase spare part Recommended spare part Spare Part |
| Mains Voltage | (5) 380 – 500 VAC |
| Phase | (T) Three phase |
| Power Rating | (P450) 450 KW / 600 HP |
| RFI Filter | (HH) IRM for IT Mains + A1 RFI (HJ) NAMUR Terminals + A2 RFI (HK) NAMUR Terminals + A1 RFI (HL) RCD + NAMUR + A2 RFI LHD – AAF006 filter + A2 RFI (HM) RCD + NAMUR + A1 RFI (HN) IRM + NAMUR + A2 RFI LHD – AAF006 filter + A1 RFI (HP) IRM + NAMUR + A1 RFI (H1) RFI Class A1/B (C1) (H2) RFI Class A2 (C3) (H3) RFI Class A1/B (C1) (H4) RFI class A1 (C2) (H5)Marine,ruggedis RFI A2(C3) RFI Filter (HE) RCD TN/TT Mains+ A2 RFI (HF) RCD TN/TT Mains+ A1 RFI (HG) IRM for IT Mains + A2 RFI |
