Description
VLT AQUA Drive FC-202 1.1 KW / 1.5 HP, 200 – 240 VAC, IP55 / Type 12, RFI Class A2 (C3), Safe Stop FC-202P1K1S2E55H2TGC1OXSXXXXA4B0CX5XXD0
Product Details 131N2673

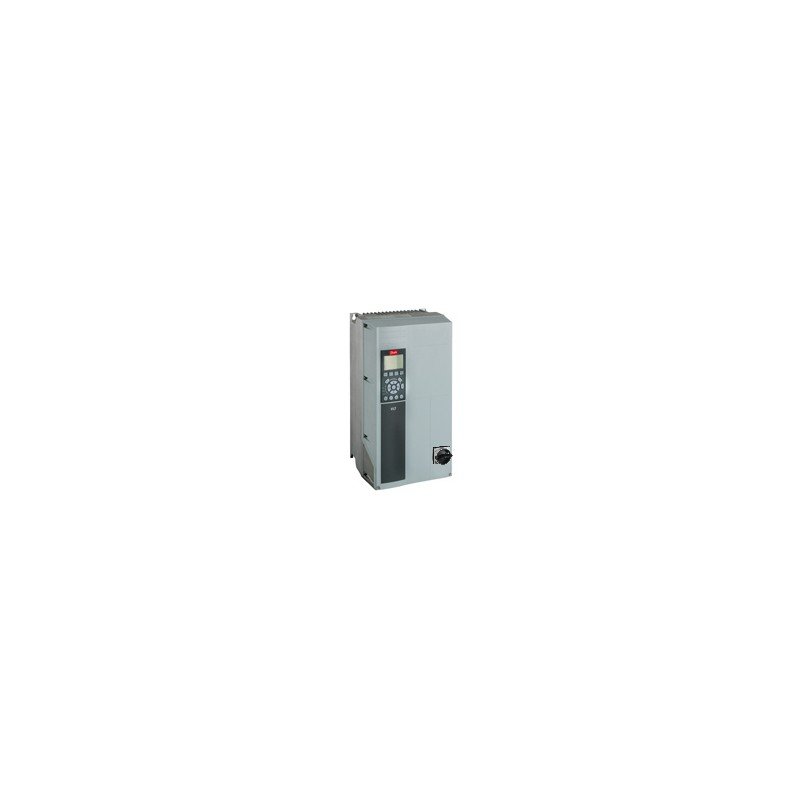

VLT AQUA Drive FC 202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (P1K1) 1.1 KW / 1.5 HP |
| Phase | (S) Single phase |
| Mains Voltage | (2) 200 – 240 VAC |
| Enclosure | (E55) IP55 / Type 12 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake – Safe Stop | (T) Safe Stop |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (1) Mains Disconnect |
| Adaptation A | (O) Metric thread cable entry |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A4) DeviceNet MCA 104 |
| B Option | (B0) MCB-109 I/O, RTC Back-up |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (5) MCO-102 Ad Cascade Control |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Frame Size | A5 |
| Typecode Part 1 | FC-202P1K1S2E55H2TGC |
| Typecode Part 2 | 1OXSXXXXA4B0CX5XXD0 |
| Product Catalog | Global (Standard) |
| Sales Organization | 2200 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 14.300 |
| Calculated Net Weight [kg] | 14.000 |
