Description

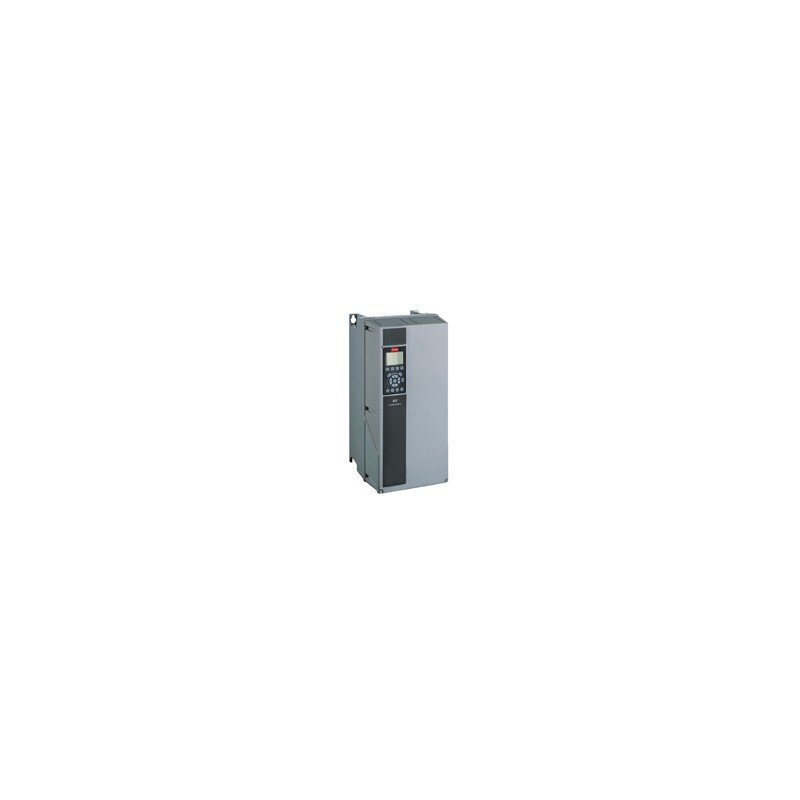

VLT HVAC Drive FC-102 560 KW / 750 HP, 380 – 480 VAC, No brake chopper, IP21 / Type 1,RFI Class A2 (C3),DeviceNet MCA 104, No B Option, Coated PCB, Fuse FC-102P560T4E21H2XGC7XXSXXXXA4BXCXXXXD0
Product Details– 131N4912
VLT HVAC Drive FC-102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (P560) 560 KW / 750 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 – 480 VAC |
| Enclosure | (E21) IP21 / Tipo 1 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake – Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (7) Fuse |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A4) DeviceNet MCA 104 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Product Catalog | Global (Standard) |
| Tipocode Part 1 | FC-102P560T4E21H2XGC |
| Tipocode Part 2 | 7XXSXXXXA4BXCXXXXD0 |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
