Description

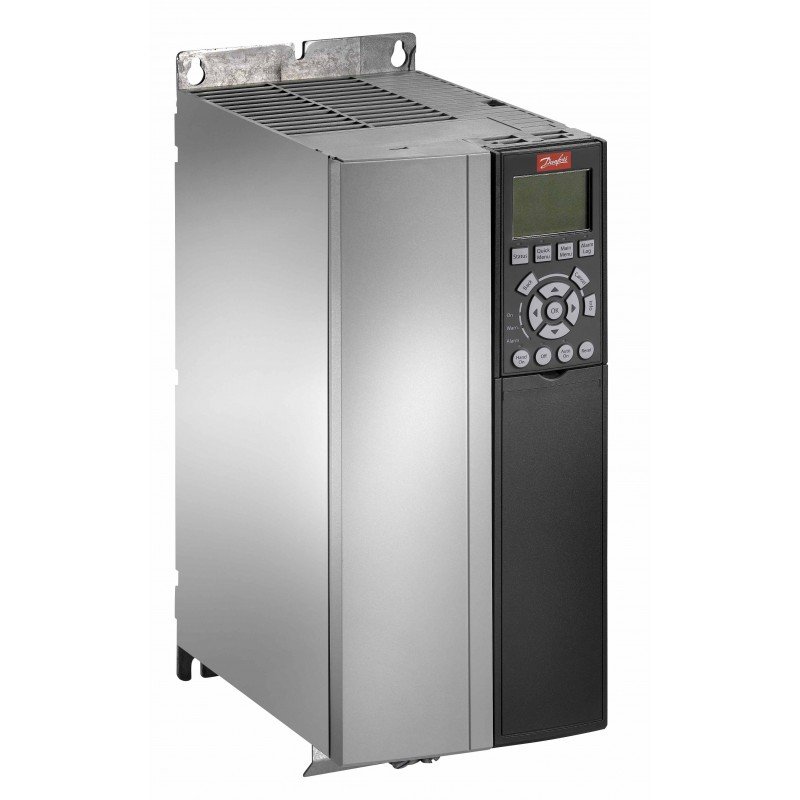

VLT Automation Drive FC-302 15 KW / 20 HP, 380-500 VAC, IP20 / Chassis,RFI Class A2 (C3), No brake chopper FC-302P15KT5E20H2XGCXXXSXXXXA0BRCXRXXDX
Product details
| Gross weight | 11.8 kg |
| Net weight | 11.5 kg |
| Volume | 0 l |
| EAN | 5702427858817 |
VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | P15K | (P15K) 15 KW / 20 HP |
| Phase | T | Three phase |
| Mains Voltage | 5 | 380 – 500 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H2 | RFI Filter |
| Brake – Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | BR | MCB-102 Encoder Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | R | MCB-113 Ext. Relay Card |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B3 | B3 |
| Typecode Part 1 | FC-302P15KT5E20H2XGC | |
| Typecode Part 2 | XXXSXXXXA0BRCXRXXDX | |
| Calculated Gross Weight | 12.3 | |
| Calculated Net Weight [kg] | 12 | |
| Continuous Current (HO) [A] | 32 | |
| Continuous Current (HO) [A] | 27 | |
| Continuous Current (NO) [A] | 37.5 | |
| Continuous Current (NO) [A] | 34 | |
| Depth [mm] | 249,0 | |
| Depth with Option A/B [mm] | 262,0 | |
| Height [mm] | 399,0 | |
| Height w/ Regen/Loadshare [mm] | NV | |
| Intermittent Current (HO) [A] | 51.2 | |
| Intermittent Current (HO) [A] | 43.2 | |
| Intermittent Current (NO) [A] | 41.2 | |
| Intermittent Current (NO) [A] | 37.4 | |
| kVA | 22.2 | |
| Material Gross Weight | 11.8 | |
| Material Net Weight | 11.5 | |
| Modelcode01 | FC-302P15KT5E20H2XGC | |
| Modelcode02 | XXXSXXXXA0BRCXRXXDX | |
| Power 110% (NO) [KW] | 18.5 | |
| Power 150% (HO) [KW] | NV | |
| Power 160% (HO) [KW] | 15 | |
| Power 180% (HO) [KW] | NV | |
| Power Loss HO [W] | 379 | |
| Power Loss HO [W] | 379 | |
| Power Loss NO [W] | 465 | |
| Power Loss NO [W] | 465 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Product View (Switch) | GLBL | Global (Standard) |
| Software Language Pack | X | Standard Language Pack |
| Software Release | SXXX | Latest release std. SW. |
| Vendor | ERR01 | Cannot Determine Vendor |
| Width w/ no C options [mm] | 165,0 |
