| Product Group |
FC- |

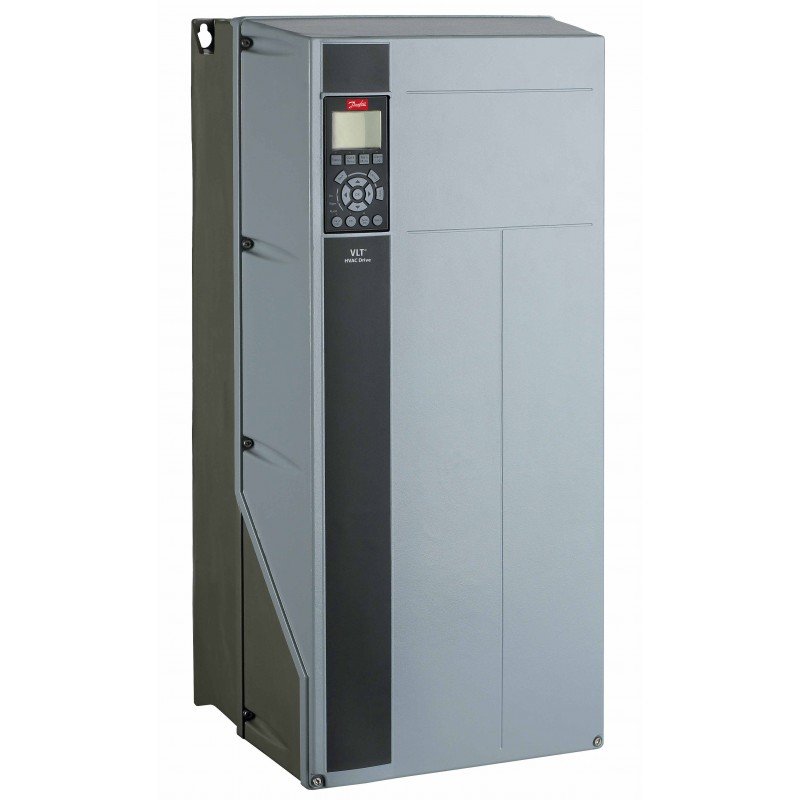

VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
P90K |
(P90K) 90 KW / 125 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 – 480 VAC |
| Enclosure |
E21 |
IP21 / Type 1 |
| RFI Filter |
H2 |
RFI Filter |
| Brake – Safe Stop |
X |
No brake chopper |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
X |
Not coated PCB |
| Mains Option |
7 |
Fuse |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| A Option |
AX |
No A Option |
| Software Release |
SXXX |
Latest release std. SW. |
| B Option |
BK |
MCB-101 General purp. I/O |
| Software Language Pack |
X |
Standard Language Pack |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
C2 |
C2 |
| Typecode Part 1 |
FC-202P90KT4E21H2XGX |
| Typecode Part 2 |
7XXSXXXXAXBKCXXXXDX |
| Calculated Gross Weight |
56.2 |
| Calculated Net Weight [kg] |
55.9 |
| Continuous Current (HO) [A] |
147 |
| Continuous Current (HO) [A] |
130 |
| Continuous Current (NO) [A] |
177 |
| Continuous Current (NO) [A] |
160 |
| Depth [mm] |
335,0 |
| Depth with Option A/B [mm] |
335,0 |
| Height [mm] |
770,0 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Intermittent Current (HO) [A] |
220 |
| Intermittent Current (HO) [A] |
195 |
| Intermittent Current (NO) [A] |
195 |
| Intermittent Current (NO) [A] |
176 |
| kVA |
123 |
| Material Gross Weight |
67.9 |
| Material Net Weight |
62.9 |
| Modelcode01 |
FC-202P90KT4E21H2XGX |
| Modelcode02 |
7XXSXXXXAXBKCXXXXDX |
| Power 110% (NO) [KW] |
90 |
| Power 150% (HO) [KW] |
75 |
| Power 160% (HO) [KW] |
NV |
| Power 180% (HO) [KW] |
NV |
| Power Loss HO [W] |
1232 |
| Power Loss HO [W] |
1232 |
| Power Loss NO [W] |
1474 |
| Power Loss NO [W] |
1474 |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Product View (Switch) |
GLBL |
Global (Standard) |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Width w/ no C options [mm] |
370,0 |
