| Product Group |
FC- |

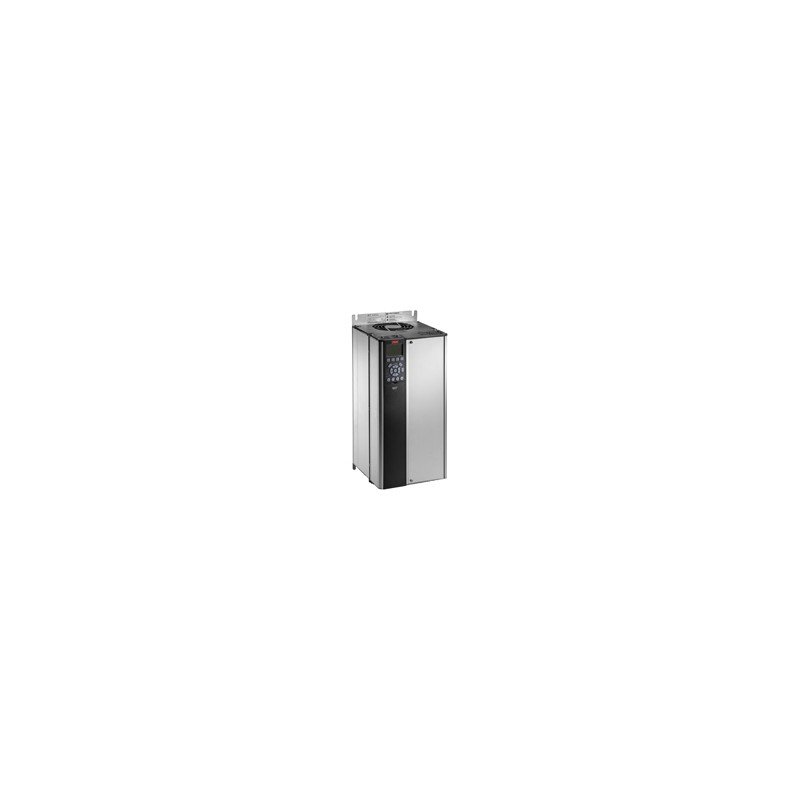

VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
P37K |
(P37K) 37 KW / 50 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 – 480 VAC |
| Enclosure |
E20 |
(E20) IP20 / Chassis |
| RFI Filter |
H2 |
RFI Filter |
| Brake – Safe Stop |
X |
No brake chopper |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
X |
Not coated PCB |
| Mains Option |
X |
No Mains Option |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| A Option |
A0 |
PROFIBUS DP MCA 101 |
| Software Release |
SXXX |
Latest release std. SW. |
| B Option |
B2 |
MCB-112 PTC Therm. Card |
| Software Language Pack |
X |
Standard Language Pack |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
D0 |
MCB-107 24V DC backup |
| Frame Size |
B4 |
B4 |
| Typecode Part 1 |
FC-202P37KT4E20H2XGX |
| Typecode Part 2 |
XXXSXXXXA0B2CXXXXD0 |
| Calculated Gross Weight |
23.8 |
| Calculated Net Weight [kg] |
23.5 |
| Continuous Current (HO) [A] |
61 |
| Continuous Current (HO) [A] |
52 |
| Continuous Current (NO) [A] |
73 |
| Continuous Current (NO) [A] |
65 |
| Depth [mm] |
242,0 |
| Depth with Option A/B [mm] |
242,0 |
| Height [mm] |
520,0 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Intermittent Current (HO) [A] |
91.5 |
| Intermittent Current (HO) [A] |
78 |
| Intermittent Current (NO) [A] |
80.3 |
| Intermittent Current (NO) [A] |
71.5 |
| kVA |
50.6 |
| Material Gross Weight |
36.6 |
| Material Net Weight |
36.3 |
| Modelcode01 |
FC-202P37KT4E20H2XGX |
| Modelcode02 |
XXXSXXXXA0B2CXXXXD0 |
| Power 110% (NO) [KW] |
37 |
| Power 150% (HO) [KW] |
30 |
| Power 160% (HO) [KW] |
NV |
| Power 180% (HO) [KW] |
NV |
| Power Loss HO [W] |
570 |
| Power Loss HO [W] |
570 |
| Power Loss NO [W] |
698 |
| Power Loss NO [W] |
698 |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Product View (Switch) |
GLBL |
Global (Standard) |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Width w/ no C options [mm] |
230,0 |
