Description

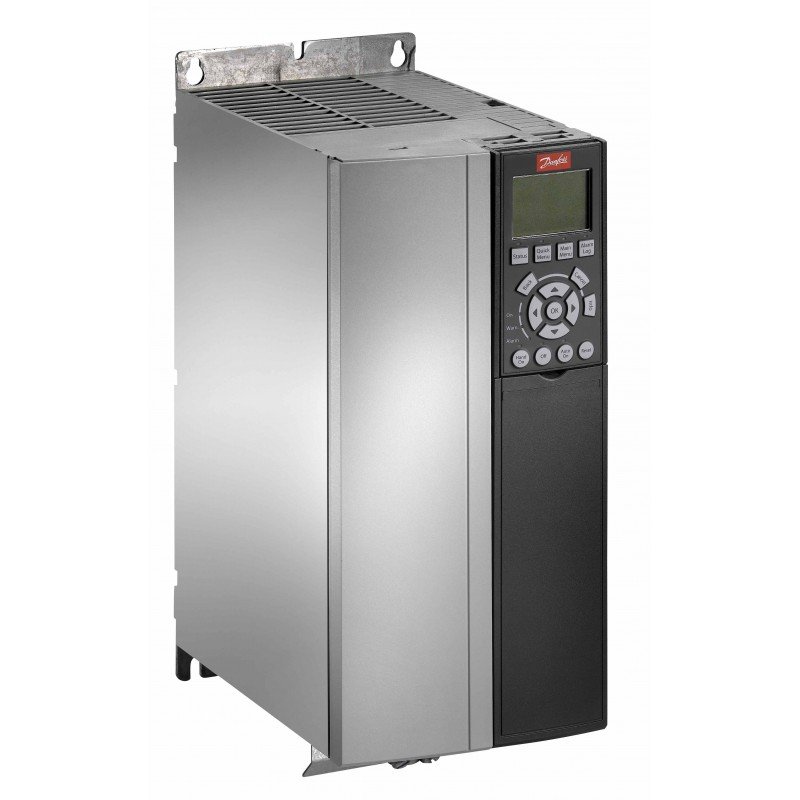

FC-302P11KT5E20H5XGCXXXSXXXXAXBXCXXXXDX VLT® AutomationDriveAutomationDrive Advanced 11kW, Three-phase 380-500V, IP20 Use excl. MARITIME EMC. No braking chopper Panel cont. local graphic. Varnished PCB, No power option Not included, Option B not included No option C0, No option C1 No software option, No option D Chassis size: B3 399x165x249mm (H x W x F)
Product details
| Gross weight | 11.3 kg |
| Net weight | 10.33 kg |
| Volume | 57.75 l |
| EAN | 5710107541331 |
VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | P11K | (P11K) 11 KW / 15 HP |
| Phase | T | Three phase |
| Mains Voltage | 5 | 380 – 500 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H5 | Marine,ruggedis RFI A2(C3) |
| Brake – Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B3 | B3 |
| Typecode Part 1 | FC-302P11KT5E20H5XGC | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
| Calculated Gross Weight | 12 | |
| Calculated Net Weight [kg] | 11.7 | |
| Continuous Current (HO) [A] | 24 | |
| Continuous Current (HO) [A] | 21 | |
| Continuous Current (NO) [A] | 32 | |
| Continuous Current (NO) [A] | 27 | |
| Depth [mm] | 249,0 | |
| Depth with Option A/B [mm] | 262,0 | |
| Height [mm] | 399,0 | |
| Height w/ Regen/Loadshare [mm] | NV | |
| Intermittent Current (HO) [A] | 38.4 | |
| Intermittent Current (HO) [A] | 33.6 | |
| Intermittent Current (NO) [A] | 35.2 | |
| Intermittent Current (NO) [A] | 29.7 | |
| kVA | 16.6 | |
| Material Gross Weight | 11.3 | |
| Material Net Weight | 10.33 | |
| Modelcode01 | FC-302P11KT5E20H5XGC | |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | |
| Power 110% (NO) [KW] | 15 | |
| Power 150% (HO) [KW] | NV | |
| Power 160% (HO) [KW] | 11 | |
| Power 180% (HO) [KW] | NV | |
| Power Loss HO [W] | 291 | |
| Power Loss HO [W] | 291 | |
| Power Loss NO [W] | 392 | |
| Power Loss NO [W] | 392 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Product View (Switch) | GLBL | Global (Standard) |
| Software Language Pack | X | Standard Language Pack |
| Software Release | SXXX | Latest release std. SW. |
| Vendor | ERR01 | Cannot Determine Vendor |
| Width w/ no C options [mm] | 165,0 |
