Description
VLT Decentral Drive FCD 3021.5 kW / 2.0 HP, 380-480VAC (Three phased), Std. White IP66/NEMA4X,RFI Class A1/C2, No brake, Drive part, large encl., No brackets,No installation box, No switch option, No Display Connector FCD302P1K5T4W66H1XYXXXXXXXXXANBXXXXXXDX
Product Details– 134H0404

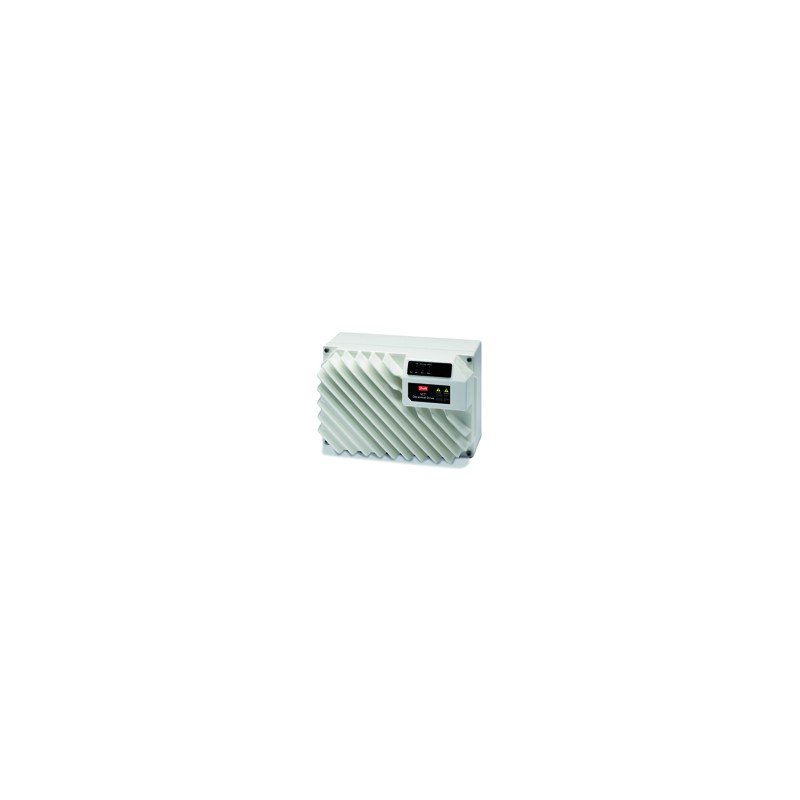

VLT Decentral Drive FCD 302
The VLT Decentral Drive FCD 302 is a complete frequency converter
designed for decentral mounting. It can be mounted on the machine/wall –
close to the motor – or directly on the motor.
The decentral design reduces the need for central control panels and
space-consuming motor control cabinets are eliminated. In addition, the
need for long screened motor cables is significantly reduced.
Product Data:
1.5 kW / 2.0 HP, 380-480VAC (Three phased), Std. White IP66/NEMA4X
| Characteristic | Value |
|---|---|
| Product Group | VLT Decentral Drive FCD |
| VLT Series | (302) 302 |
| Power Rating | (P1K5) 1.5 kW / 2.0 HP |
| Mains Voltage | (T4) 380-480VAC (Three phased) |
| Enclosure | (W66) Std. White IP66/NEMA4X |
| RFI Filter | (H1) RFI Class A1/C2 |
| Brake | (X) No brake |
| Hardware Configuration | (Y) Drive part, large encl. |
| Brackets | (X) No brackets |
| Threads | (X) No installation box |
| Switch Option | (X) No switch option |
| Display | (X) No Display Connector |
| Sensor Plugs | (X) No sensor plugs |
| Motor Plug | (X) No motor plug |
| Mains Plug | (X) No mains plug |
| Fieldbus Plug | (X) No fieldbus plug |
| Reserved | (X) Reserved |
| A Option | (AN) Ethernet IP |
| B Option | (BX) No B option |
| Reserved for SW | (XXXXX) Reserved for SW |
| D Option | (DX) No option |
| Tipocode Part 1 | FCD302P1K5T4W66H1XYXXXXXXXXX |
| Tipocode Part 2 | ANBXXXXXXDX |
| Product Catalog | Global (Standard) |
| Vendor Region | Southern Europe |
| Vendor | Factory DK |
