Description

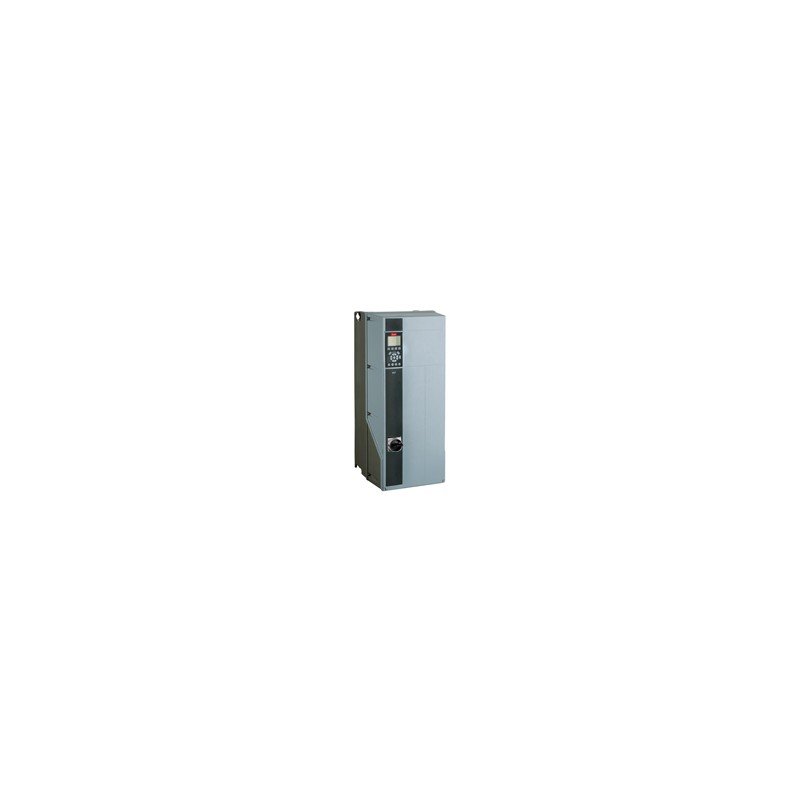

VLT AQUA Drive FC-202 37 KW / 50 HP, 380 – 480 VAC, IP55 / Type 12 Backplate, Marine, ruggedised RFI A2 (C3), Brake chopper FC-202P37KT4P55H5BNC8XXSXXXXA4B4CX5XXD0
Product Details 134L1695
VLT AQUA Drive FC 202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (P37K) 37 KW / 50 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 – 480 VAC |
| Enclosure | (P55) IP55 / Type12 Backplate |
| RFI Filter | Marine, ruggedised RFI A2 (C3) |
| Brake – Safe Stop | (B) Brake chopper |
| LCP | (N) Numerical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (8) Disconnect + Loadsharing |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A4) DeviceNet MCA 104 |
| B Option | (B4) MCB-114 VLT Sensor Input |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (5) MCO-102 Ad Cascade Control |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Frame Size | C1 |
| Typecode Part 1 | FC-202P37KT4P55H5BNC |
| Typecode Part 2 | 8XXSXXXXA4B4CX5XXD0 |
| Product Catalog | Global (Standard) |
| Sales Organization | 2200 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 45.600 |
| Calculated Net Weight [kg] | 45.300 |
