| Product Group |
FC- |

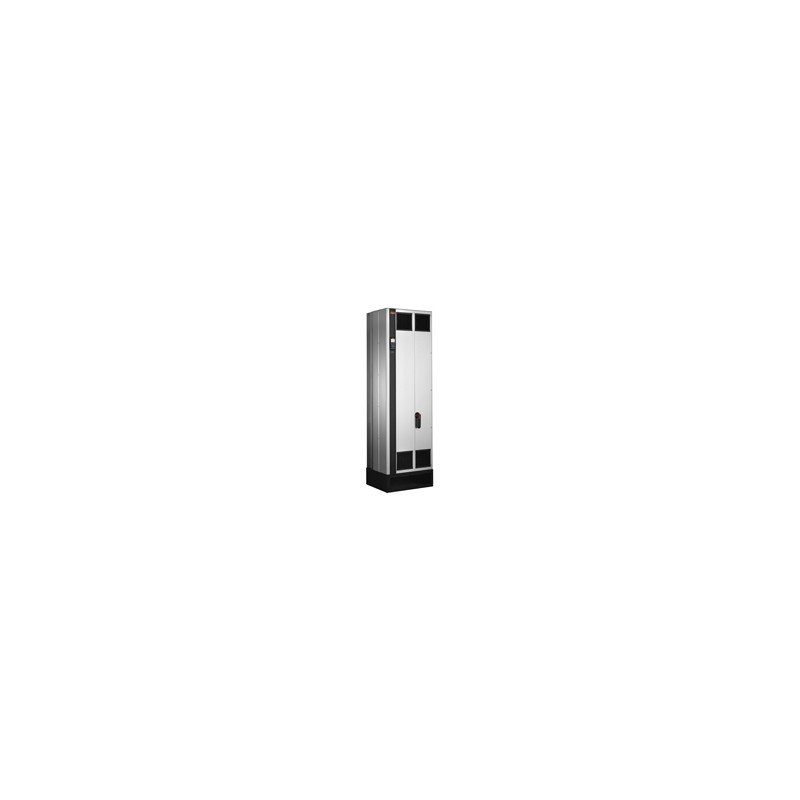

VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
P500 |
(P500) 500 KW / 650 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
7 |
525 – 690 VAC * |
| Enclosure |
E54 |
(E54) IP54 / Type 12 |
| RFI Filter |
H2 |
RFI Filter |
| Brake – Safe Stop |
X |
No brake chopper |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
3 |
Mains Disconnect + Fuse |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| A Option |
AX |
No A Option |
| Software Release |
SXXX |
Latest release std. SW. |
| B Option |
BK |
MCB-101 General purp. I/O |
| Software Language Pack |
X |
Standard Language Pack |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
D0 |
MCB-107 24V DC backup |
| Frame Size |
E1 |
E1 |
| Typecode Part 1 |
FC-202P500T7E54H2XGC |
| Typecode Part 2 |
3XXSXXXXAXBKCXXXXD0 |
| Calculated Gross Weight |
263.3 |
| Calculated Net Weight [kg] |
263 |
| Continuous Current (HO) [A] |
429 |
| Continuous Current (HO) [A] |
410 |
| Continuous Current (NO) [A] |
523 |
| Continuous Current (NO) [A] |
500 |
| Depth [mm] |
494,0 |
| Depth with Option A/B [mm] |
494,0 |
| Height [mm] |
2000,0 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Intermittent Current (HO) [A] |
644 |
| Intermittent Current (HO) [A] |
615 |
| Intermittent Current (NO) [A] |
575 |
| Intermittent Current (NO) [A] |
550 |
| kVA |
598 |
| Material Gross Weight |
298 |
| Material Net Weight |
258 |
| Modelcode01 |
FC-202P500T7E54H2XGC |
| Modelcode02 |
3XXSXXXXAXBKCXXXXD0 |
| Possible rating issue |
WARN01 |
Possible Rating Issue: |
| Power 110% (NO) [KW] |
500 |
| Power 150% (HO) [KW] |
400 |
| Power 160% (HO) [KW] |
NV |
| Power 180% (HO) [KW] |
NV |
| Power Loss HO [W] |
4795 |
| Power Loss HO [W] |
4970 |
| Power Loss NO [W] |
6010 |
| Power Loss NO [W] |
6239 |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Product View (Switch) |
GLBL |
Global (Standard) |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Width w/ no C options [mm] |
600,0 |
