Description

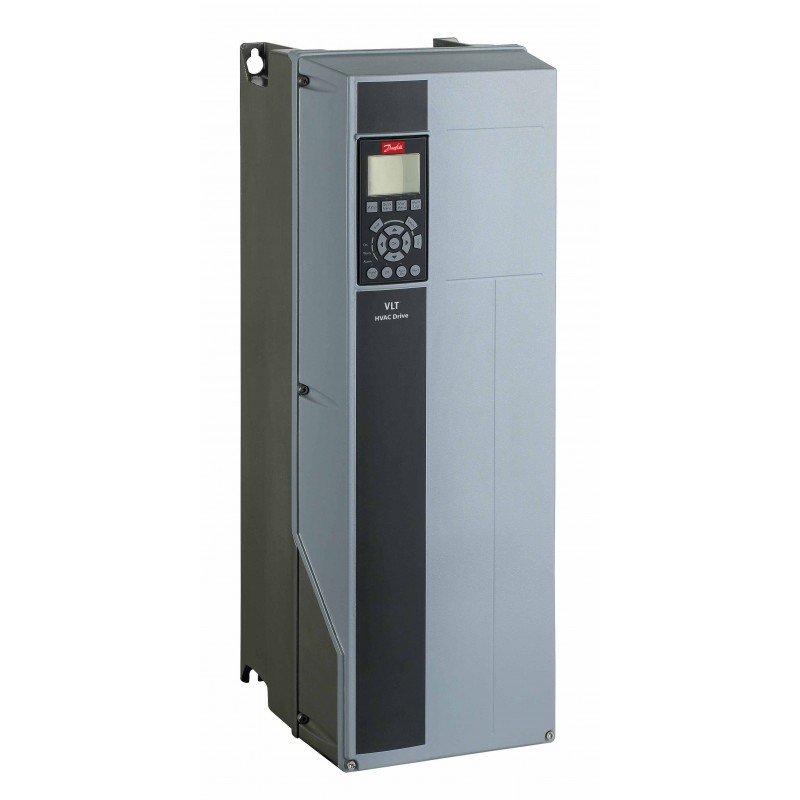

VLT HVAC Drive FC-102 22 KW / 30 HP, 380-480 VAC, No brake chopper, IP55 / Type 12, RFI Class A2 (C3), PROFINET MCA 120, No B Option, Coated PCB, No Mains Option FC-102P22KT4E55H2XGCXXXSXXXXALBXCXXXXDX
Product details
| Gross weight | 28.3 kg |
| Net weight | 28 kg |
| Volume | 0 l |
| EAN | 5710107797776 |
VLT® HVAC DRIVE FC 100 SERIES
| Product Group | FC- | VLT® HVAC Drive FC- |
| Series | 102 | 102 |
| Power Rating | P22K | (P22K) 22 KW / 30 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 – 480 VAC |
| Enclosure | E55 | IP55 / Type 12 |
| RFI Filter | H2 | RFI Filter |
| Brake – Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| A Option | AL | PROFINET MCA 120 |
| Software Release | SXXX | Latest release std. SW. |
| B Option | BX | No B Option |
| Software Language Pack | X | Standard Language Pack |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B2 | B2 |
| Typecode Part 1 | FC-102P22KT4E55H2XGC | |
| Typecode Part 2 | XXXSXXXXALBXCXXXXDX | |
| Calculated Gross Weight | 28.9 | |
| Calculated Net Weight [kg] | 28.6 | |
| Continuous Current (HO) [A] | NV | |
| Continuous Current (HO) [A] | NV | |
| Continuous Current (NO) [A] | 44 | |
| Continuous Current (NO) [A] | 40 | |
| Depth [mm] | 260,0 | |
| Depth with Option A/B [mm] | 260,0 | |
| Height [mm] | 650,0 | |
| Height w/ Regen/Loadshare [mm] | NV | |
| Intermittent Current (HO) [A] | NV | |
| Intermittent Current (HO) [A] | NV | |
| Intermittent Current (NO) [A] | 48.4 | |
| Intermittent Current (NO) [A] | 44 | |
| kVA | 30.5 | |
| Material Gross Weight | 28.3 | |
| Material Net Weight | 28 | |
| Modelcode01 | FC-102P22KT4E55H2XGC | |
| Modelcode02 | XXXSXXXXALBXCXXXXDX | |
| Power 110% (NO) [KW] | 22 | |
| Power 150% (HO) [KW] | NV | |
| Power 160% (HO) [KW] | NV | |
| Power 180% (HO) [KW] | NV | |
| Power Loss HO [W] | NV | |
| Power Loss HO [W] | NV | |
| Power Loss NO [W] | 525 | |
| Power Loss NO [W] | 525 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Product View (Switch) | GLBL | Global (Standard) |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Vendor | ERR01 | Cannot Determine Vendor |
| Width w/ no C options [mm] | 242,0 |
