Description

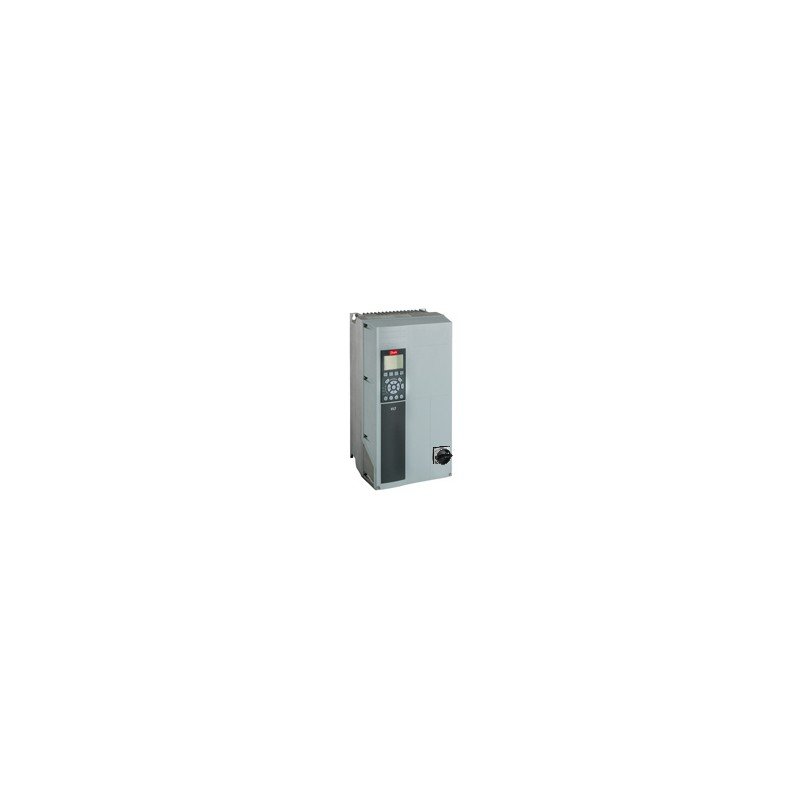

VLT Automation Drive FC-301 0.37 KW / 0.50 HP, 380-480 VAC, IP66 / NEMA 4X,RFI Class A1/B (C1), Brake chopper FC-301PK37T4E66H1BGC1SXSXXXXA0BPC4XXXD0
Product details
| Gross weight | 12.4 kg |
| Net weight | 12.1 kg |
| Volume | 0 l |
| EAN | 5710107854219 |
VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 301 | 301 |
| Power Rating | PK37 | (PK37) 0.37 KW / 0.50 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 – 480 VAC |
| Enclosure | E66 | (E66) IP66 / NEMA 4X |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
| Brake – Safe Stop | B | Brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 1 | Mains Disconnect |
| Adaptation A | S | Smooth imperial cable entr |
| Adaptation B | X | No adaptation |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | BP | MCB-105 Relay Card |
| C0 Option MCO | C4 | MCO-305 ( SyncPos) |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | MCB-107 24V DC backup |
| Frame Size | A5 | A5 |
| Typecode Part 1 | FC-301PK37T4E66H1BGC | |
| Typecode Part 2 | 1SXSXXXXA0BPC4XXXD0 | |
| Calculated Gross Weight | 12.4 | |
| Calculated Net Weight [kg] | 12.1 | |
| Continuous Current (HO) [A] | 1.3 | |
| Continuous Current (HO) [A] | 1.2 | |
| Continuous Current (NO) [A] | NV | |
| Continuous Current (NO) [A] | NV | |
| Depth [mm] | 200,0 | |
| Depth with Option A/B [mm] | 200,0 | |
| Height [mm] | 420,0 | |
| Height w/ Regen/Loadshare [mm] | NV | |
| Intermittent Current (HO) [A] | 2.08 | |
| Intermittent Current (HO) [A] | 1.92 | |
| Intermittent Current (NO) [A] | NV | |
| Intermittent Current (NO) [A] | NV | |
| kVA | 0.9 | |
| Material Gross Weight | 12.4 | |
| Material Net Weight | 12.1 | |
| Modelcode01 | FC-301PK37T4E66H1BGC | |
| Modelcode02 | 1SXSXXXXA0BPC4XXXD0 | |
| Power 110% (NO) [KW] | NV | |
| Power 150% (HO) [KW] | NV | |
| Power 160% (HO) [KW] | 0.37 | |
| Power 180% (HO) [KW] | NV | |
| Power Loss HO [W] | 35 | |
| Power Loss HO [W] | 35 | |
| Power Loss NO [W] | NV | |
| Power Loss NO [W] | NV | |
| Product Catalog | NO_VIEW | NO VIEW |
| Product View (Switch) | GLBL | Global (Standard) |
| Software Language Pack | X | Standard Language Pack |
| Software Release | SXXX | Latest release std. SW. |
| Vendor | ERR01 | Cannot Determine Vendor |
| Width w/ no C options [mm] | 242,0 |
