| Product Group |
FC- |

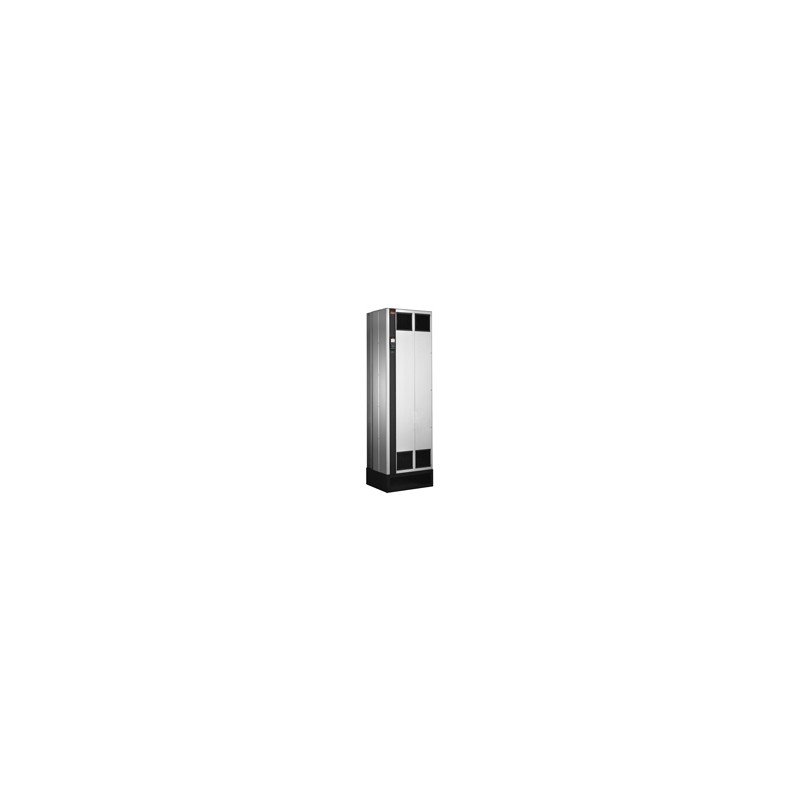

VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
P355 |
(P355) 355 KW / 500 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 – 480 VAC |
| Enclosure |
E5M |
IP54/Type 12+main shield |
| RFI Filter |
H2 |
RFI Filter |
| Brake – Safe Stop |
X |
No brake chopper |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
X |
No Mains Option |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| A Option |
A0 |
PROFIBUS DP MCA 101 |
| Software Release |
SXXX |
Latest release std. SW. |
| B Option |
BX |
No B Option |
| Software Language Pack |
X |
Standard Language Pack |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
D0 |
MCB-107 24V DC backup |
| Frame Size |
E1 |
E1 |
| Typecode Part 1 |
FC-202P355T4E5MH2XGC |
| Typecode Part 2 |
XXXSXXXXA0BXCXXXXD0 |
| Calculated Gross Weight |
270.3 |
| Calculated Net Weight [kg] |
270 |
| Continuous Current (HO) [A] |
600 |
| Continuous Current (HO) [A] |
540 |
| Continuous Current (NO) [A] |
658 |
| Continuous Current (NO) [A] |
590 |
| Depth [mm] |
494,0 |
| Depth with Option A/B [mm] |
494,0 |
| Height [mm] |
2000,0 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Intermittent Current (HO) [A] |
900 |
| Intermittent Current (HO) [A] |
810 |
| Intermittent Current (NO) [A] |
724 |
| Intermittent Current (NO) [A] |
649 |
| kVA |
456 |
| Material Gross Weight |
270.3 |
| Material Net Weight |
270 |
| Modelcode01 |
FC-202P355T4E5MH2XGC |
| Modelcode02 |
XXXSXXXXA0BXCXXXXD0 |
| Power 110% (NO) [KW] |
355 |
| Power 150% (HO) [KW] |
315 |
| Power 160% (HO) [KW] |
NV |
| Power 180% (HO) [KW] |
NV |
| Power Loss HO [W] |
6794 |
| Power Loss HO [W] |
6118 |
| Power Loss NO [W] |
7532 |
| Power Loss NO [W] |
6724 |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Product View (Switch) |
GLBL |
Global (Standard) |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Width w/ no C options [mm] |
600,0 |
