| Product Group |
FC- |

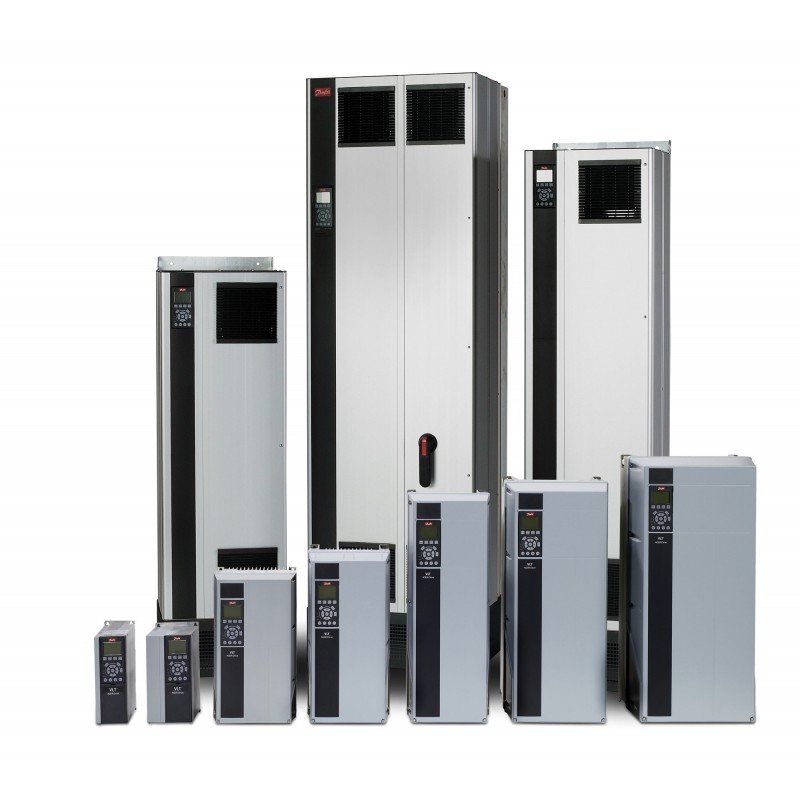

VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
P15K |
(P15K) 15 KW / 20 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
2 |
200 – 240 VAC |
| Enclosure |
E66 |
(E66) IP66 / NEMA 4X |
| RFI Filter |
H2 |
RFI Filter |
| Brake – Safe Stop |
X |
No brake chopper |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
3 |
Mains Disconnect + Fuse |
| Adaptation A |
S |
Smooth imperial cable entr |
| Adaptation B |
X |
No adaptation |
| A Option |
AX |
No A Option |
| Software Release |
SXXX |
Latest release std. SW. |
| B Option |
B0 |
MCB-109 I/O, RTC Back-up |
| Software Language Pack |
X |
Standard Language Pack |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
B2 |
B2 |
| Typecode Part 1 |
FC-202P15KT2E66H2XGC |
| Typecode Part 2 |
3SXSXXXXAXB0CXXXXDX |
| Calculated Gross Weight |
28.9 |
| Calculated Net Weight [kg] |
28.6 |
| Continuous Current (HO) [A] |
46.2 |
| Continuous Current (HO) [A] |
NV |
| Continuous Current (NO) [A] |
59.4 |
| Continuous Current (NO) [A] |
NV |
| Depth [mm] |
260,0 |
| Depth with Option A/B [mm] |
260,0 |
| Height [mm] |
650,0 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Intermittent Current (HO) [A] |
73.9 |
| Intermittent Current (HO) [A] |
NV |
| Intermittent Current (NO) [A] |
65.3 |
| Intermittent Current (NO) [A] |
NV |
| kVA |
21.4 |
| Material Gross Weight |
28.3 |
| Material Net Weight |
28 |
| Modelcode01 |
FC-202P15KT2E66H2XGC |
| Modelcode02 |
3SXSXXXXAXB0CXXXXDX |
| Power 110% (NO) [KW] |
15 |
| Power 150% (HO) [KW] |
NV |
| Power 160% (HO) [KW] |
11 |
| Power 180% (HO) [KW] |
NV |
| Power Loss HO [W] |
463 |
| Power Loss HO [W] |
NV |
| Power Loss NO [W] |
602 |
| Power Loss NO [W] |
NV |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Product View (Switch) |
GLBL |
Global (Standard) |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Width w/ no C options [mm] |
242,0 |
