| Product Group |
FC- |

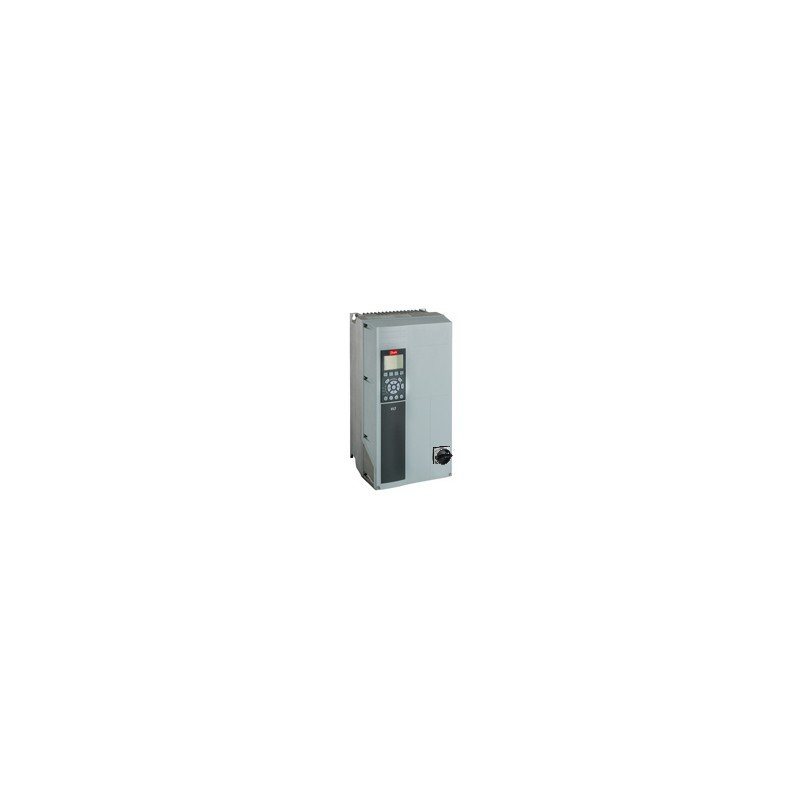

VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
P1K1 |
(P1K1) 1.1 KW / 1.5 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
2 |
200 – 240 VAC |
| Enclosure |
E66 |
(E66) IP66 / NEMA 4X |
| RFI Filter |
H2 |
RFI Filter |
| Brake – Safe Stop |
X |
No brake chopper |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
3 |
Mains Disconnect + Fuse |
| Adaptation A |
S |
Smooth imperial cable entr |
| Adaptation B |
X |
No adaptation |
| A Option |
AN |
EtherNet/IP MCA 121 |
| Software Release |
SXXX |
Latest release std. SW. |
| B Option |
BX |
No B Option |
| Software Language Pack |
X |
Standard Language Pack |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
A5 |
A5 |
| Typecode Part 1 |
FC-202P1K1T2E66H2XGC |
| Typecode Part 2 |
3SXSXXXXANBXCXXXXDX |
| Calculated Gross Weight |
13.5 |
| Calculated Net Weight [kg] |
13.2 |
| Continuous Current (HO) [A] |
NV |
| Continuous Current (HO) [A] |
NV |
| Continuous Current (NO) [A] |
6.6 |
| Continuous Current (NO) [A] |
NV |
| Depth [mm] |
200,0 |
| Depth with Option A/B [mm] |
200,0 |
| Height [mm] |
420,0 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Intermittent Current (HO) [A] |
NV |
| Intermittent Current (HO) [A] |
NV |
| Intermittent Current (NO) [A] |
7.26 |
| Intermittent Current (NO) [A] |
NV |
| kVA |
2.38 |
| Material Gross Weight |
12.5 |
| Material Net Weight |
12.2 |
| Modelcode01 |
FC-202P1K1T2E66H2XGC |
| Modelcode02 |
3SXSXXXXANBXCXXXXDX |
| Power 110% (NO) [KW] |
1.1 |
| Power 150% (HO) [KW] |
1.1 |
| Power 160% (HO) [KW] |
NV |
| Power 180% (HO) [KW] |
NV |
| Power Loss HO [W] |
NV |
| Power Loss HO [W] |
NV |
| Power Loss NO [W] |
63 |
| Power Loss NO [W] |
NV |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Product View (Switch) |
GLBL |
Global (Standard) |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Width w/ no C options [mm] |
242,0 |
