Description
FC-202P630T4E54N2XGC3XKSXXXXAXBXCXXXXDX

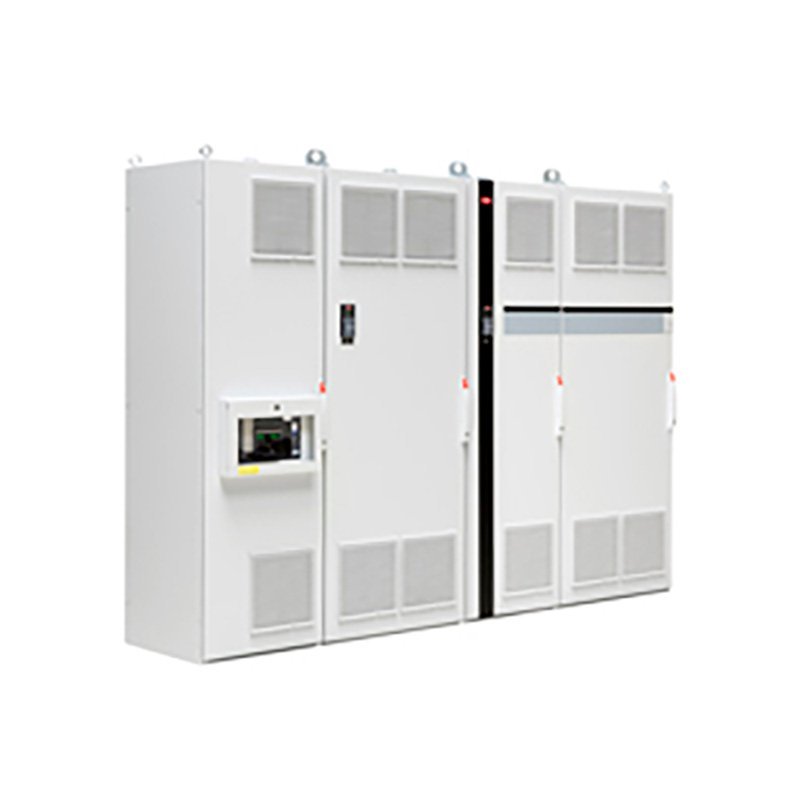

Frequency converter
FC-202P630T4E54N2XGC3XKSXXXXAXBXCXXXXDX
VLT® AQUA Drive FC-202
(P630) 630 KW / 900 HP, Three phase
380 – 480 VAC, (E54) IP54 / Type 12
LHD – AAF006 filter + A2 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: F18
Other options according to Model code
Model code :
FC-202P630T4E54N2XGC3XKSXXXXAXBXCXXXXDX
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 893.3 kg |
| Net weight | 893 kg |
| Volume | 0 l |
| EAN | 5710108156145 |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P630 | (P630) 630 KW / 900 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 – 480 VAC |
| Enclosure | E54 | (E54) IP54 / Type 12 |
| RFI Filter | N2 | LHD – AAF006 filter + A2 RFI |
| Brake – Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 3 | Mains Disconnect + Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | K | F Frame Common Motor Term |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | F18 | F18 |
| Typecode Part 1 | FC-202P630T4E54N2XGC | |
| Typecode Part 2 | 3XKSXXXXAXBXCXXXXDX | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 560 | |
| Power 110% (NO) [KW] | 630 | |
| Height [mm] | 2277,0 | |
| Width w/ no C options [mm] | 2802,0 | |
| Depth [mm] | 607,0 | |
| Depth with Option A/B [mm] | 607,0 | |
| kVA | 776 | |
| Power Loss NO [W] | 12512 | |
| Power Loss NO [W] | 11595 | |
| Power Loss HO [W] | 10649 | |
| Power Loss HO [W] | 9414 | |
| Continuous Current (NO) [A] | 1120 | |
| Intermittent Current (NO) [A] | 1232 | |
| Continuous Current (NO) [A] | 1050 | |
| Intermittent Current (NO) [A] | 1155 | |
| Continuous Current (HO) [A] | 990 | |
| Intermittent Current (HO) [A] | 1485 | |
| Continuous Current (HO) [A] | 890 | |
| Intermittent Current (HO) [A] | 1335 | |
| Calculated Gross Weight [kg] | 1899.3 | |
| Calculated Net Weight [kg] | 1899 | |
| Material Gross Weight | 893.3 | |
| Material Net Weight | 893 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P630T4E54N2XGC | |
| Modelcode02 | 3XKSXXXXAXBXCXXXXDX |
